Features of the LED Poster Display

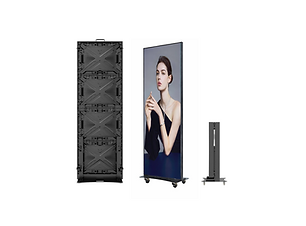

1. Space-Saving Foldable Cabinet Design

This LED poster features a foldable metal cabinet structure in which the screen height can be reduced by approximately 50% after folding. This system facilitates transportation, storage, and handling of the equipment, significantly reducing logistics volume. It is especially suitable for outdoor signage projects, urban advertising, or temporary installations that require frequent relocation. The folding process is fast and tool-free, helping optimize time, space, and operational costs.



2. Quick Lock System for Easy Installation

The display incorporates a rear quick-lock system that allows the cabinet to be secured after deployment in just a few steps and without additional tools. This design simplifies outdoor installation, especially for applications such as commercial entrances, outdoor events, or temporary urban signage. Even personnel without technical experience can complete the installation easily while ensuring structural stability during continuous operation.



3. High-Strength Iron Cabinet for Permanent Outdoor Use

The cabinet is constructed with a reinforced iron structure, providing greater mechanical resistance against impacts, vibrations, and harsh environmental conditions. This design improves equipment durability and allows installation in outdoor environments for extended periods. Thanks to its robust construction, the display is suitable for urban areas, pedestrian zones, commercial entrances, or permanent outdoor advertising applications.

​

4. Internal Wiring System Between Cabinet Sections

Unlike systems that use external wiring between structural modules, this LED poster adopts an internal wiring system between the upper and lower cabinet sections, improving cable protection against moisture, dust, and external handling. This solution reduces risks during transportation and installation, increasing system reliability in long-term outdoor applications.

​

5. Main Connection via Aviation Connectors and Network Cable

The main power supply and control signal use aviation-type connectors and standard network cables, ensuring stable, secure connections suitable for outdoor environments. This system simplifies maintenance and system expansion, enabling flexible configurations for single installations or multiple cascaded units.



6. Waterproof Design for Continuous Outdoor Operation

The cabinet is designed with a sealed structure and modules firmly fixed to the chassis, improving protection against water and dust. This allows the display to operate reliably under outdoor conditions such as rain, humidity, or long-term environmental exposure. Thanks to this design, the equipment can be permanently installed outdoors without affecting performance.

​

7. Integrated Control Box for a Professional Appearance

The display includes an integrated control box inside the cabinet, housing the main electronic components and signal and power distribution system. This protects internal circuits from the external environment while providing a clean and professional appearance, eliminating visible wiring and reducing the risk of accidental disconnection.



8. Designed for Permanent Outdoor Installation and Cascading Connection

This LED poster is specially engineered for long-term outdoor use, offering high structural stability and environmental resistance. It also supports cascading connection between multiple units using network cables and aviation power connectors, enabling the creation of larger display surfaces or continuous configurations for outdoor advertising, urban digital signage, or large-format commercial applications.



9. Flight Case Packaging

For frequent transportation, the LED poster can be stored and shipped in a flight case. Thanks to the foldable cabinet design, fewer flight cases are required, helping reduce volume, shipping costs, and handling time. The flight case provides robust protection during transport, keeping the screen safe from impacts, dust, and moisture. It is an ideal solution for rental companies, event service providers, or any business requiring secure, efficient, and repeatable transport.
