250×250 mm LED Module for 500×1000 mm LED Cabinet

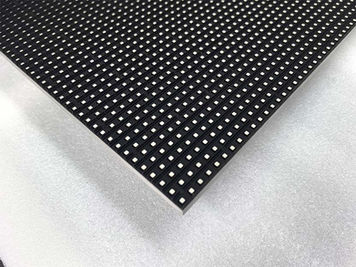

LED panels with aluminum frames provide enhanced protection and robust structural performance. These units are manufactured using high-strength metal materials capable of withstanding high temperatures while ensuring rapid heat dissipation. The assembly meets the 5VB flame-retardant rating, offering improved operational safety for outdoor applications.

​

Fully Sealed Waterproof Design

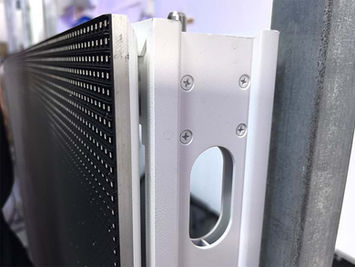

The fully sealed die-cast metal frame completely protects the LED modules. The connectors between modules are waterproof, ensuring secure and stable connections, while a drainage hole at the bottom of the panel prevents water accumulation. With excellent protection standards, these units are designed to withstand long-term exposure to water without performance issues.

​

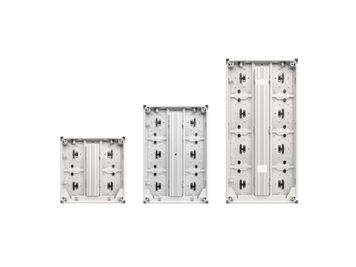

Multiple Cabinet Size Options

To meet installation requirements of different scales and design configurations, the series provides several cabinet sizes that are fully compatible with each other. This allows flexible assembly, easier project expansion, and improved inventory management efficiency.

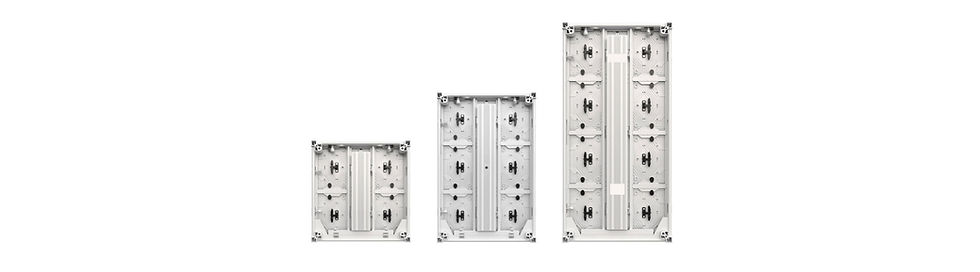

Available cabinet sizes include:

500 × 500 × 85 mm / 8 kg

500 × 750 × 85 mm / 12 kg

500 × 1000 × 85 mm / 16 kg

These configurations support small-, medium-, and large-scale installations as well as customized projects while maintaining consistent standards of stability, durability, and visual uniformity.

​

Rigid Connection and Fully Cable-Free Design

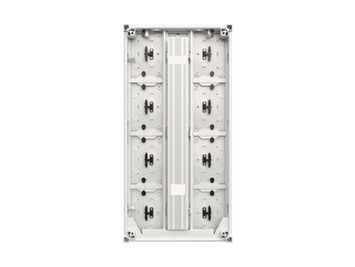

The structure adopts a highly reliable rigid internal connection system combined with a concealed wiring architecture, creating a cabinet design completely free of exposed cables. This concept not only enhances the visual appearance of the cabinet but also reduces the risk of accidental disconnection and improves long-term durability in outdoor environments.

In addition, the cable-free design significantly simplifies maintenance, as each module and component can be quickly removed without interference from additional wiring. The result is a safer, more stable, and cleaner overall display system.

​

Naked-Eye 3D Visual Display Capability

The cabinet supports 90° right-angle splicing, enabling the creation of corner LED displays capable of producing realistic naked-eye 3D visual effects without the need for special glasses.

​

This system transforms structural surfaces into high-impact visual landmarks, attracting audience attention and enhancing advertising and artistic presentation performance.

Fully Waterproof Outdoor Design

​

With a protection rating of IP66, the series uses independently sealed waterproof outdoor modules combined with a fully enclosed cabinet structure that effectively prevents the ingress of dust, rain, and moisture.

​

The fanless structural design reduces cabinet openings, eliminating vulnerable points and improving overall system reliability under harsh environmental conditions.

This ensures stable operation even under heavy rain, high humidity, prolonged sun exposure, and sudden temperature changes, making the display highly suitable for long-term outdoor installations.
